A Programming Approach to Drafting

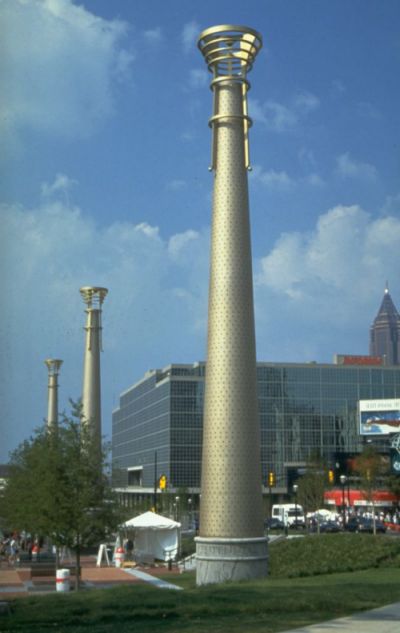

Three months before the Olympics came to Atlanta AIM (Architectural Image Manufacturing) approached ASSI about laying out the aluminum skin panels for the 6 truncated conical shaped columns to surround Olympic Centennial Park.

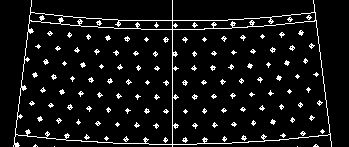

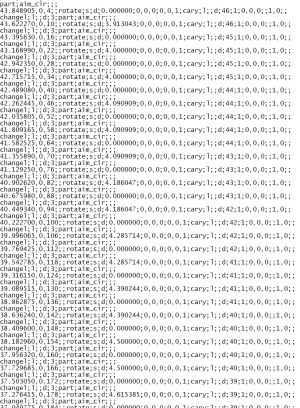

Rather than "draft" a layout for aluminum skin panels and hole placement ASSI created a program that mathematically calculated the shape and hole placement in the form of a CAD script...

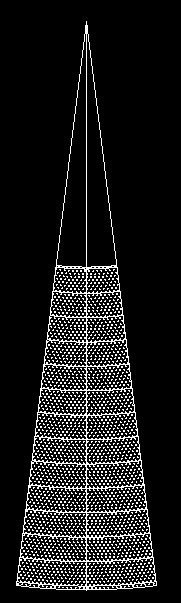

This created a CAD file with a layout for each progressive aluminum panel on the truncated conical shape.

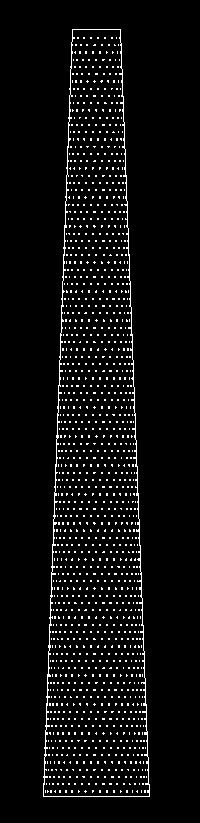

This created a series of panels for the entire shape which was then saved to Computer Numerical Control files and used by laser cutters to fabricate the panels.

A good thing that a programming solution was used. This 3D CAD file was printed on a 10' piece of paper and shown to the architect. When shown the layout the architect changed his mind about the spacing of the holes! Because it was a program, ASSI simply changed the formula and re-ran the routine.

and in time for the Atlanta Olympic Games...

A monument to stand the test of time ...

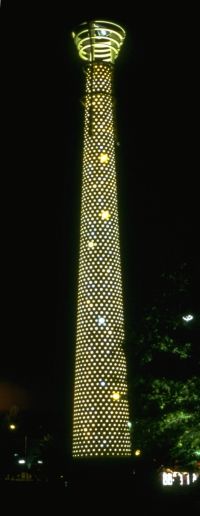

designed to illuminate the night sky.

 ASSI and AIM.
Partnering for excellence...
